Thickness | 0.13-2.5mm | 0.005"-0.098"inch |
Width | 600-1500mm | 23.62"-59.05"inch |
Coil ID | Φ508mm / Φ610mm | |
Painting | Top: 10-35μm / Back: 5-14μm | |
Coating Thickness | 30-275 g/㎡ | |
Colors | As per RAL color (custom patterns are available) | |
Grades | DX51/52/53/54D+AZ, S280GD+AZ, S350GD+AZ, S550GD+AZ, SECC, etc. | |
Primer Category | ● Epoxy Primer | |
● Polyester Primer | ||
● Water-soluble Acrylic Acid Primer | ||
● Polyurethane Primer | ||
Finish Coats Category | ● Polyester (PET) | |
● Silicon Modified Polyesters (SMP) | ||
● High-Durability Polyester (HDP) | ||
● Polyvinylidene Fluoride (PVDF) | ||
Application | Construction industry, Transportation, Electrical equipment, Furniture. etc. |

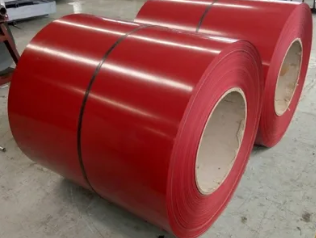

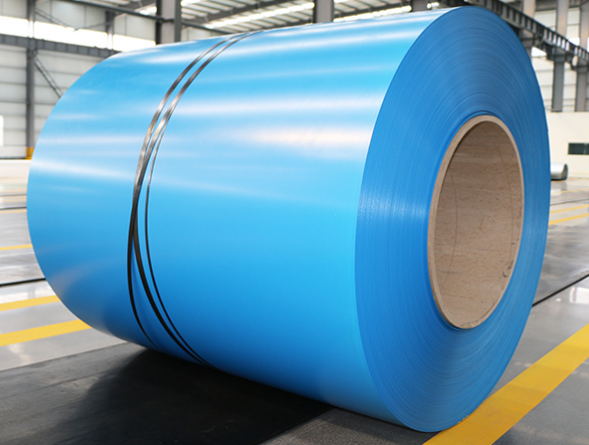

The acronym PPGL stands for “Prepainted Galvalume Steel” or “Prepainted Galvanized Steel.” It is a coated steel that combines galvanized steel’s corrosion resistance with the better durability and heat reflectivity of aluminum-zinc alloy-coated steel (Galvalume).
To make PPGL steel, a protective layer of paint or coating is applied to the Galvalume or galvanized steel base. This coating gives additional protection against corrosion, improves the appearance of the steel, and increases its longevity.
CREDIT
The combination of Galvalume steel’s natural corrosion resistance and the protective pre-painted coating makes PPGL steel coil extremely corrosion resistant. It offers long-term rust protection, even in tough situations or high moisture levels.
The Galvalume steel substrate of PPGL coil is extremely durable and strong. It has a high tensile strength, making it difficult to distort and damage. The pre-painted covering increases the coil’s durability by protecting it from scratches, abrasion, and weathering.
CREDIT
PPGL coil is available in a variety of colors, coatings, and patterns, providing excellent design versatility. It enables architects, designers, and manufacturers to fulfill their aesthetic goals, whether for roofing, cladding, or other uses. The color and finish selections retain their vibrancy and attractiveness throughout time.
PPGL coils with reflecting coatings can assist reduce heat absorption in buildings, making them more energy efficient. The coil’s capacity to reflect sunlight can help to cut cooling expenses while also creating a more comfortable indoor environment.
Installation and maintenance are simplified by the lightweight and easy-to-handle nature of PPGL coil. It requires less care because the pre-painted coating serves as a protective barrier, eliminating the need for periodic cleaning or repainting.
