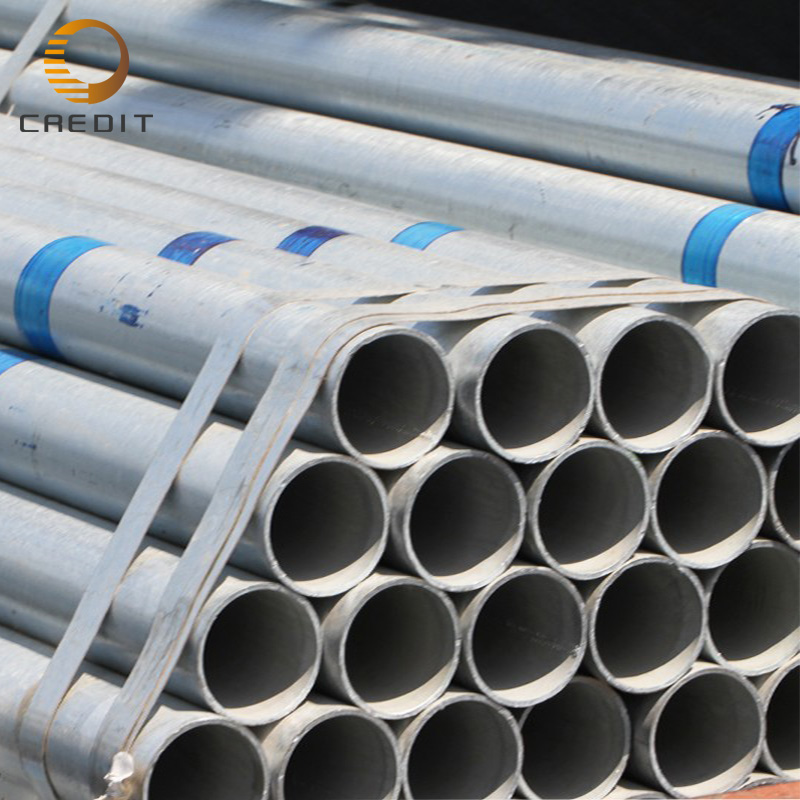

Hot Galvanized Steel Pipe

The performance of a hot-dip galvanized pipe is determined by both the base steel and the quality of the zinc coating. The selection of the appropriate material grade is crucial for ensuring the safety, reliability, and longevity of any project.

The Role of the Zinc Coating

The galvanizing process creates a metallurgical bond between the zinc and the steel, forming a series of zinc-iron alloy layers with a final layer of pure zinc on the surface. This multi-layered coating provides  two types of protection:

1. Barrier Protection: The dense zinc coating isolates the steel from corrosive elements like moisture and oxygen.

2. Sacrificial Protection: Since zinc is more electrochemically active than steel, it will corrode

preferentially if the coating is scratched or damaged, protecting the exposed steel from rust. This "sacrificial" action ensures the integrity of the pipe even with minor surface damage.

The Hot-Dip Galvanizing Process galvanized steel pipe

The transformation of a standard steel pipe into a corrosion-resistant product involves a meticulous,  multi-step process. While details may vary, the core stages are standardized to ensure a high-quality, uniform coating.

1. Surface Preparation: This is the most critical stage. The steel pipe is first cleaned in an alkaline solution to remove oil and grease (alkali cleaning). It is then submerged in an acid bath, typically hydrochloric acid, to remove mill scale and rust (pickling).

2. Fluxing: After rinsing, the pipe is treated with a flux solution (often zinc ammonium chloride) to  remove any remaining oxides and prevent new ones from forming before it enters the galvanizing kettle.

3. Galvanizing: The clean pipe is fully immersed in a bath of molten zinc heated to approximately

450°C (842°F) according to manufacturing process descriptions. During immersion, the molten zinc reacts with theiron in the steel to form the bonded alloy layers.

4. Finishing and Inspection: After withdrawal from the zinc bath, excess zinc is removed to ensure a smooth finish. The pipe is then cooled, often in a water or passivation quench, to prevent the

formation of white rust. Finally, each pipe undergoes a thorough inspection for coating thickness, uniformity, and appearance to ensure it meets quality standards.

Key Applications Across Industries

Thanks to their durability and resistance to corrosion, hot-dip galvanized steel pipes are utilized in a vast array of applications across multiple sectors.

gi pipe

·  Construction and Infrastructure: They are essential for structural applications such as

scaffolding, guardrails, fencing, and building frameworks, especially in outdoor or exposed environments where longevity is critical.

·  Fluid Transportation: A primary use is for transporting water and other low-pressure fluids. They are widely employed in municipal water supply and drainage systems, fire sprinkler systems, and    for conveying gas and oil.

.  Agriculture: The agricultural sector relies on galvanized pipes for constructing greenhouses,

irrigation systems, and livestock enclosures due to their ability to withstand moisture and corrosive farm chemicals .

.  Oil and Gas Industry: In the oil and gas sector, these pipes are used for transporting corrosive media and in pipelines where their resistance to environmental degradation prevents leaks and   ensures operational safety .

·  Energy and Telecommunications: They serve as durable conduits for electrical wiring and are used in structural supports for power transmission and telecommunication towers.
